Description

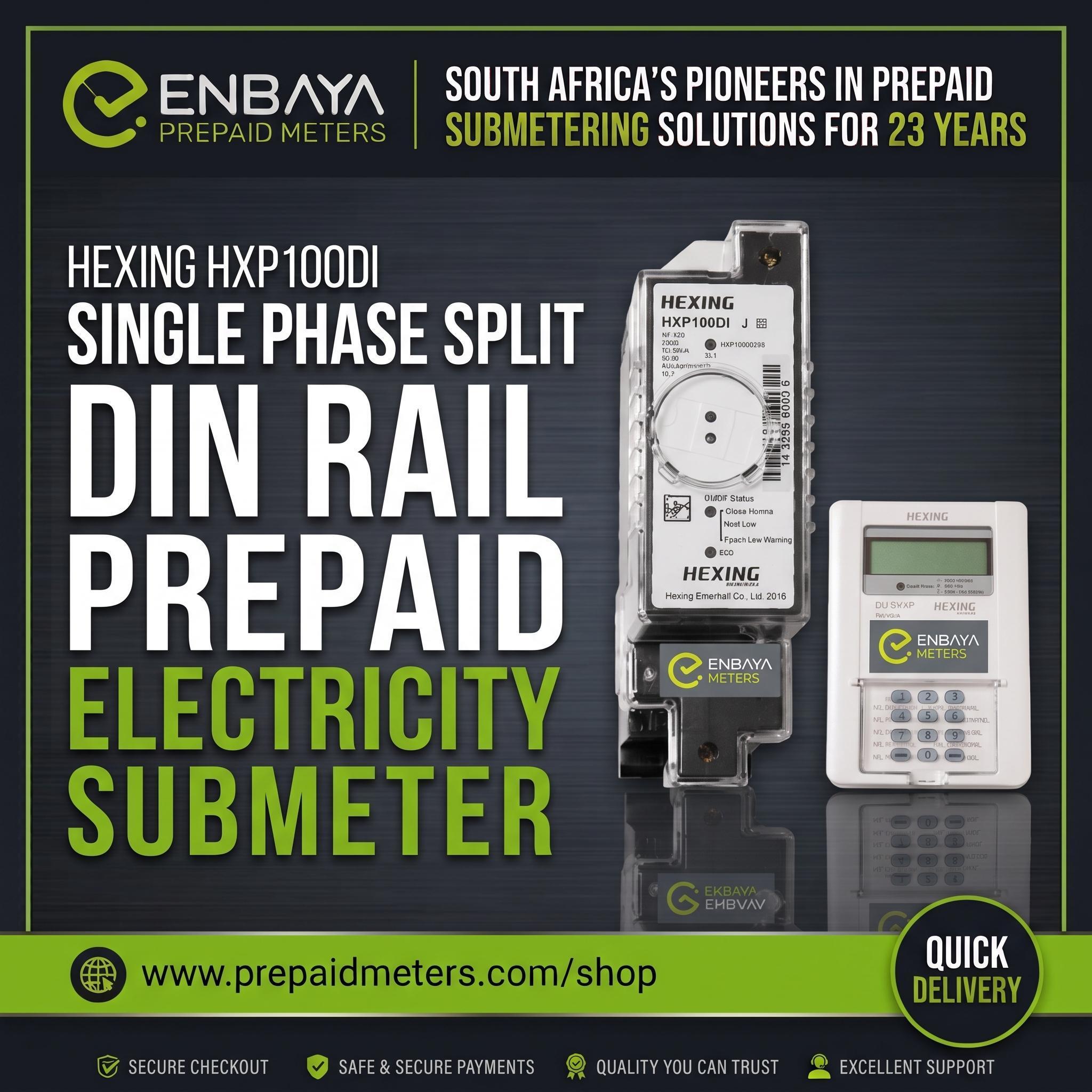

Hexing HXP100DI Single Phase Split DIN Rail Prepaid Submeter
Securely manage electricity usage and recover utility costs with the Hexing HXP100DI Single Phase Split DIN Rail Prepaid Electricity Submeter. Engineered specifically for landlords, property managers, and multi-tenanted residential or light commercial properties, this submeter offers an unbeatable combination of tamper protection and user convenience.
Its split DIN rail design allows the primary meter body to be installed safely inside a main distribution board or lockable enclosure, while the separate Customer Interface Unit (CIU) keypad resides inside the tenant’s living or working space. This separation ensures tenants can easily enter top-up tokens without ever needing physical access to the main electrical panel.
Ideal Applications
The Hexing HXP100DI is the ideal submetering solution for private property utility recovery across a wide range of properties, including:
- Residential rental units, garden cottages, and granny flats
- Apartment blocks, flats, and multi-tenant housing complexes
- Commercial properties, small retail shops, and office parks
- Multi-tenanted distribution board installations
- Sub-distribution panel retrofits
Key Features & Benefits
Maximum Tamper Protection & Security
By isolating the meter body inside a locked distribution panel or enclosure, property owners significantly reduce the risk of illegal bypass, physical tampering, or unauthorized line taps.
Separate Customer Interface Unit (CIU)
Tenants load electricity credits using a portable or wall-mounted keypad unit (CIU) installed inside their unit. Tokens are entered via a standard 20-digit STS keypad without opening or touching the distribution board.
STS Compliant & 80A High-Capacity Rating
Fully certified under the Standard Transfer Specification (STS), the meter supports up to 80 Amps of continuous current—making it suitable for standard domestic appliances, geysers, air conditioning, and light commercial equipment.
Accurate Consumption Measurement
Eliminate dispute-prone billing estimates and shared account calculations. Each submeter precisely tracks real-time power consumption for a dedicated unit, ensuring tenants pay only for what they use.
Seamless Enbaya Vending Integration
Pre-configured to work directly with Enbaya’s vending platform, allowing tenants to conveniently purchase prepaid tokens online, via mobile banking, or at supported retail outlets 24/7.
How the Split Submeter System Works
- Secure Installation: The HXP100DI meter body mounts onto a standard DIN rail inside the main distribution board or sub-panel, downstream of the main municipal meter.
- CIU Placement: The Customer Interface Unit (CIU) keypad is placed in a convenient location inside the tenant’s room or unit.
- Token Purchase: The tenant purchases prepaid electricity tokens through Enbaya’s vending channels and receives a standard 20-digit STS code.
- Easy Recharge: The tenant enters the 20-digit token into the CIU keypad. The credit transfers directly to the meter, instantly updating the remaining kilowatt-hour (kWh) balance.
Technical Specifications
- Brand: Hexing
- Model: HXP100DI
- Product Type: Prepaid electricity submeter
- Phase: Single phase
- Configuration: Split (Meter + separate CIU)
- Mounting: 35mm DIN rail mount
- Current Rating: 80A
- Customer Interface: Separate CIU keypad
- Token Standard: STS compliant (20-digit token)
- Application: Private submetering & utility cost recovery
Is the Split DIN Rail Meter Right for Your Property?
Choose the Hexing HXP100DI if you want maximum tamper security by locking the main meter away inside a distribution board, while still providing your tenant with a convenient indoor keypad for token entry.
Note: If you prefer an all-in-one unit where the keypad and screen are built into the front of the meter body itself, consider an integrated prepaid meter such as the Hexing HXE115-KP.
Important Notice: This device is a secondary submeter intended for private electricity management and utility cost recovery downstream of the main supply. Installation must be performed by a qualified electrician in compliance with local electrical safety regulations.
Why Choose Enbaya Prepaid Meters?
With 23 years of specialized experience in prepaid submetering solutions, Enbaya provides far more than just hardware. We deliver a complete, end-to-end utility management system backed by proven industry expertise:
- Fast, hassle-free meter registration and onboarding process
- Reliable 24/7 prepaid token vending platform for tenants
- Dedicated technical support and customer care helplines
- Free site inspections available for qualifying development projects
- Trusted submetering systems powering thousands of properties nationwide
Simplify your utility management and protect your property income today.
IMPORTANT: This meter is managed by Enbaya Prepaid Meters
Order your Hexing HXP100DI Single Phase Split DIN Rail Prepaid Submeter online now or explore our full range of Enbaya Prepaid Submeters.
